Standard and customized probes

Velocity, pressure and temperature probes for any application


From conventional Pitot-static, five- and seven-hole velocity probes to 37-hole omnidirectional probes, direct vorticity probes and micro-thermistor probes, we offer a range of standard and customizable probe configurations for any fluid measurement application.

Multi-hole pressure probes remain one of the simplest and most robust means to measure fluid velocity and direction. Our family of pressure-based velocity and vorticity probes, with our multichannel pressure measurement systems and software, allow for simple and straightforward, reliable flow velocity characterization right out of the box. Together with our temperature and pressure probes, we can offer full thermodynamic state measurement capability. Available in a range of sizes, materials and configurations, our probes offer a fully-customizable solution for any measurement requirement.


Applications


Velocity, temperature and pressure probes

Wind-tunnel laboratory

Wind tunnel testing

Three-component velocity probes provide a robust and low-cost alternative to non-intrusive optical and laser flow interrogation techniques; high-density rakes can also provide simultaneous, multi-point measurements for statistical analysis. With multi-sensor stings and fully-customizable configurations availble, these probes provide powerful measurement capability in a compact, minimally intrusive package.

Formula 1 cars going around a hairpin turn

Motorsport

High-precision, low-mass velocity (and specifically yaw angle) are available, with compact integrated sensor packages, for use in motorsport track measurement and control applications.

A fully armed MQ-9 Reaper

Unmanned aircraft and UAVs

Low-mass probes are available for flight applications, for measurement of angle of attack, sideslip angle, as well as relative airspeed and air temperature. De-icing capability and birdstrike survivability are also available as options.


Features

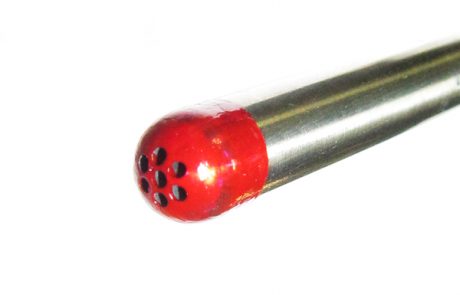

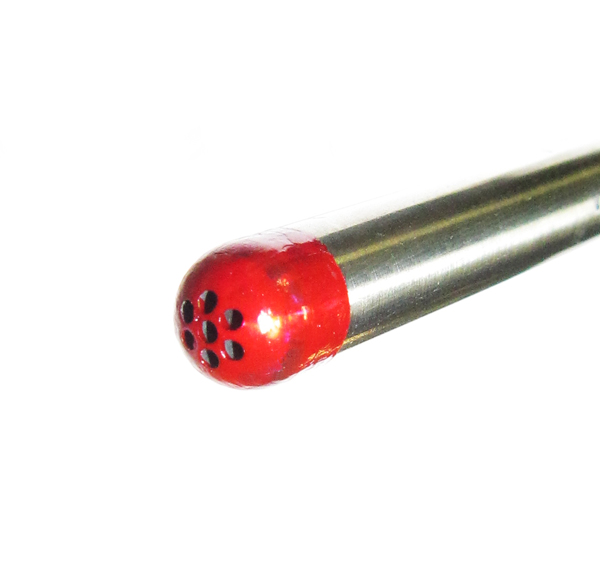

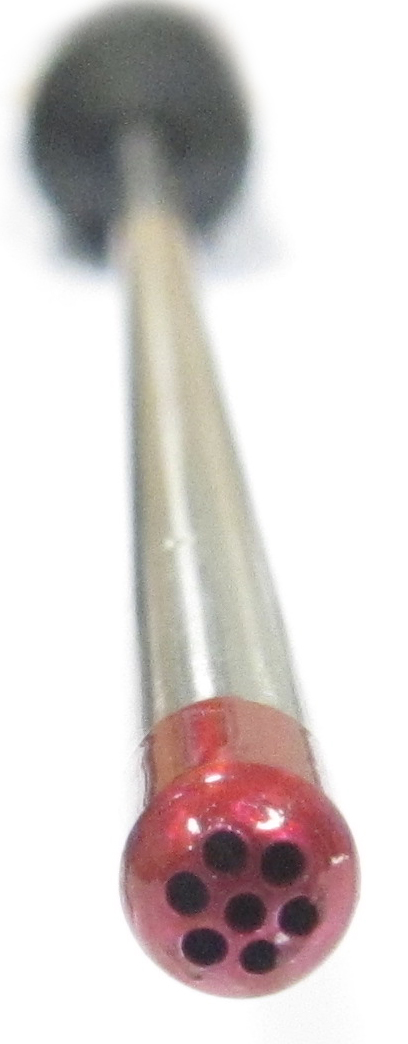

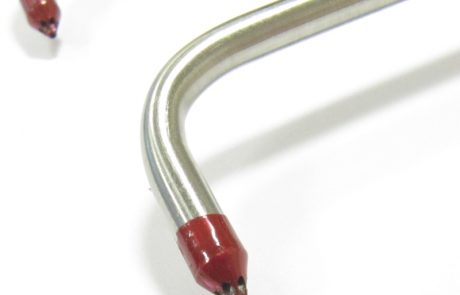

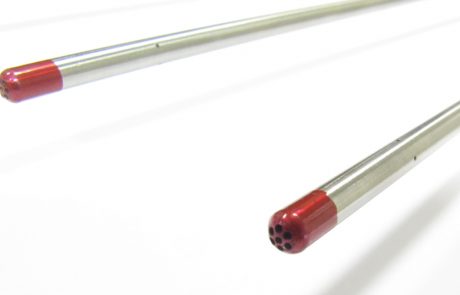

5-, 7- and "n"-hole probes

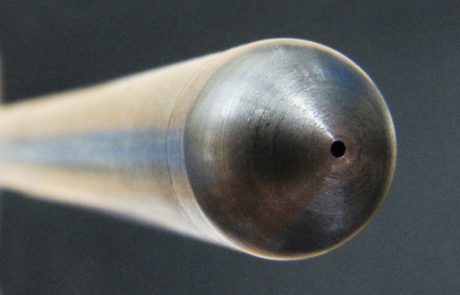

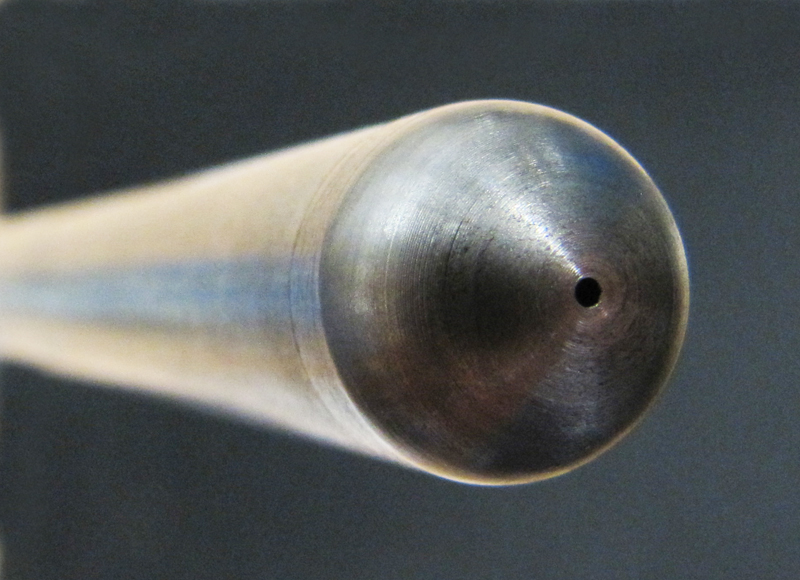

Pressure-based velocity probes can be constructed in nearly any configuration, from conventional Pitot-static arrangements to 19-hole vorticity probes and even 64-hole omnidirectional velocity probes.

Temperature probes

Heavy, conventional and micro-thermistor temperature probes; high-bandwidth cold-wire probes available

Range of sensors available

Probes are available with or without integrated sensor packages, with a wide range of sensors available in a variety of sensitivities and sizes

Range of materials available

Probes can be manufactured out of a range of materials, including plastics, aluminiums, hardened and stainless steels

Rapid prototyping available

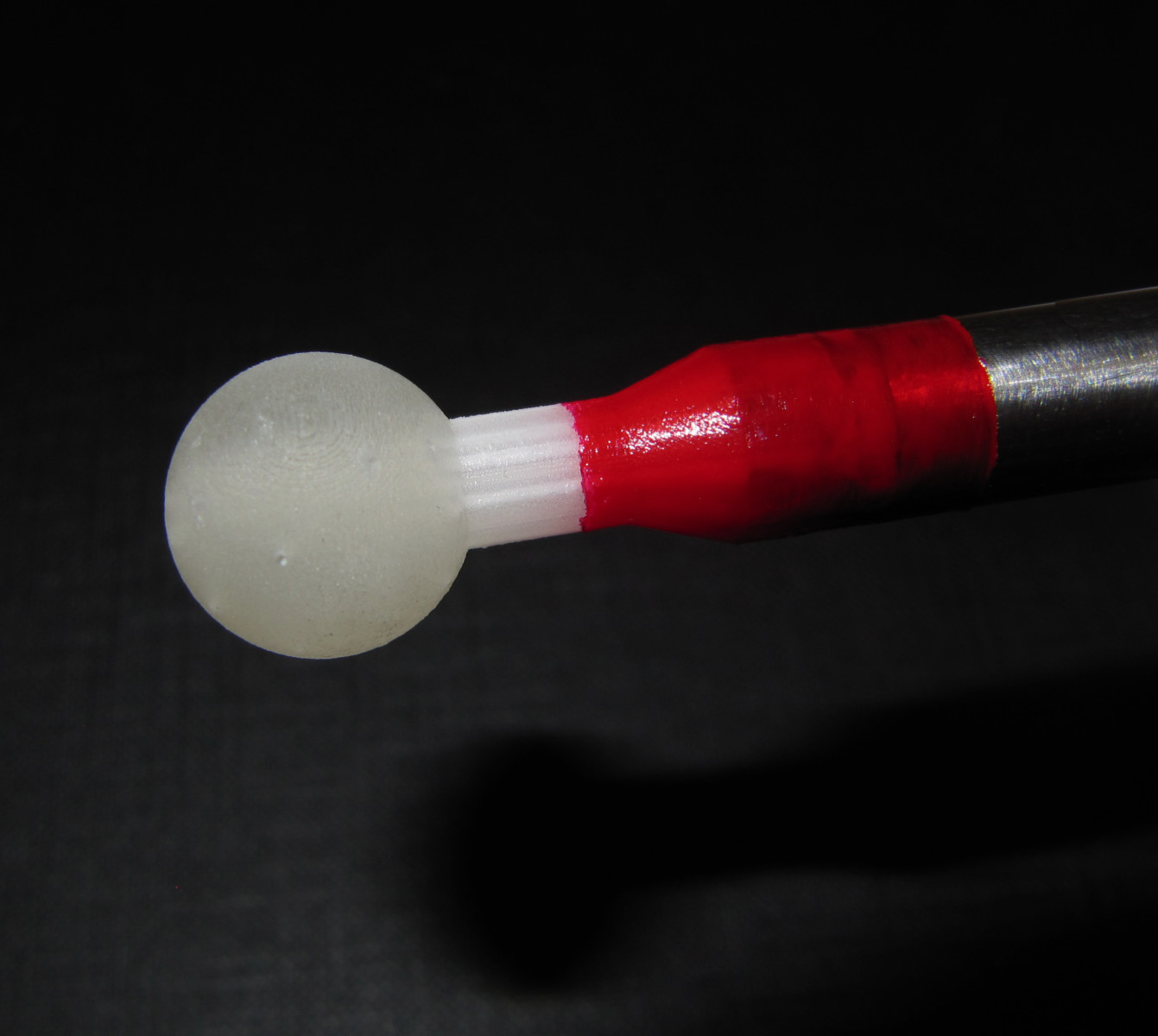

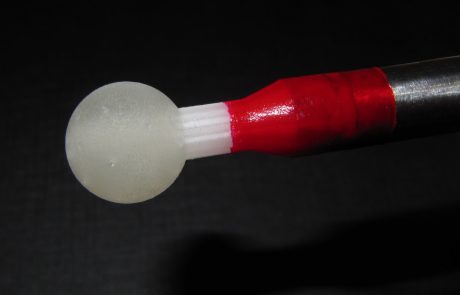

Unconventional and custom probe geometries can be produced using rapid prototyping techniques, in acrylic and aluminium.

Calibration service available

Individual probe calibration services are also available, for velocity (direction and magnitude), temperature and pressure.


Product Details


Capabilities and performance

Probes can be designed for specific applications, and specifications will vary depending on the design.

System specifications

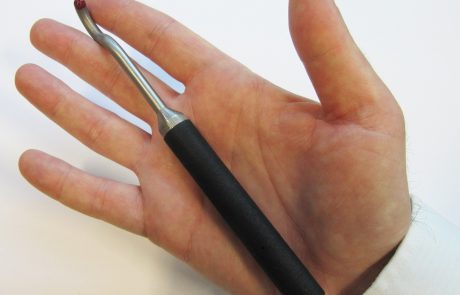

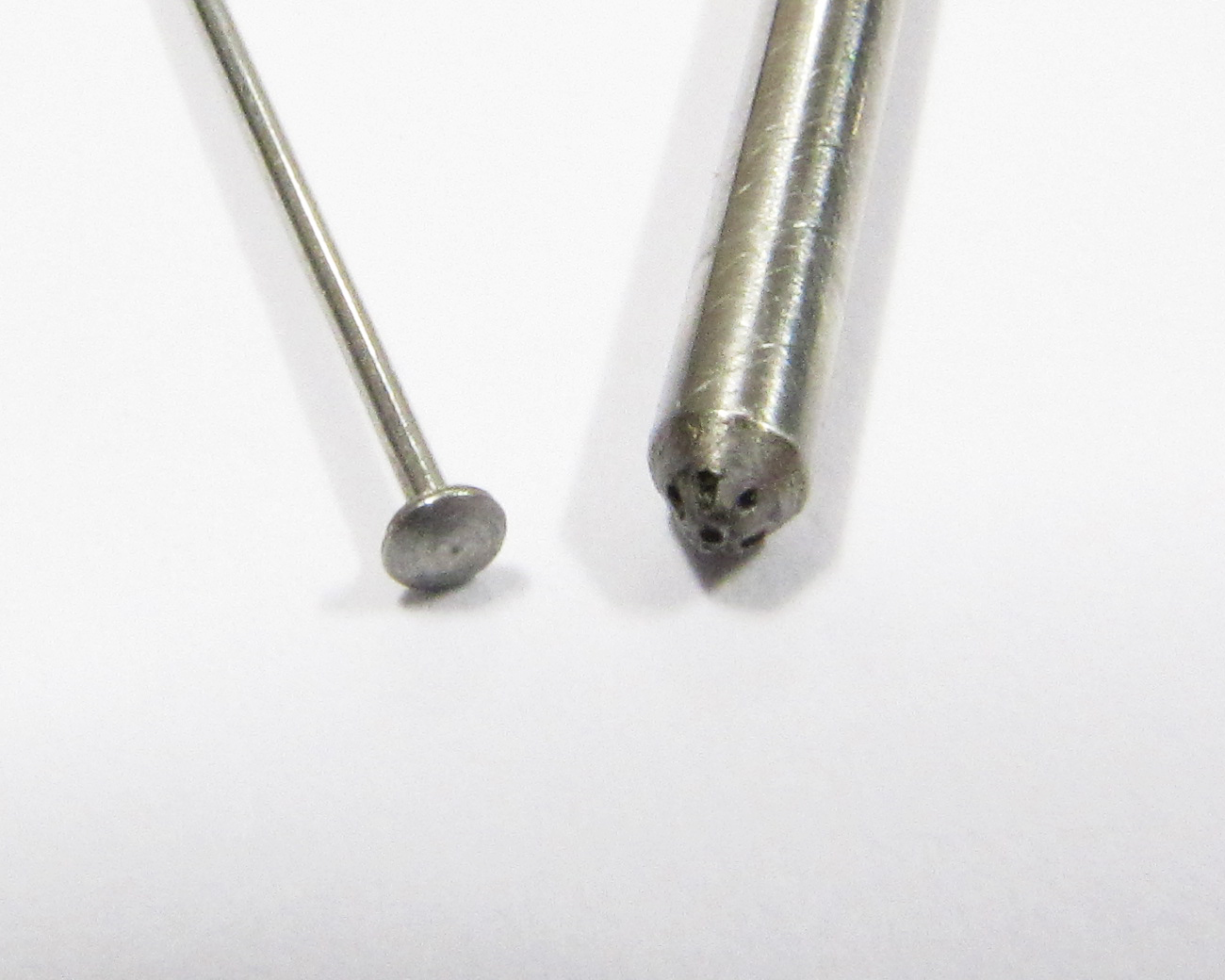

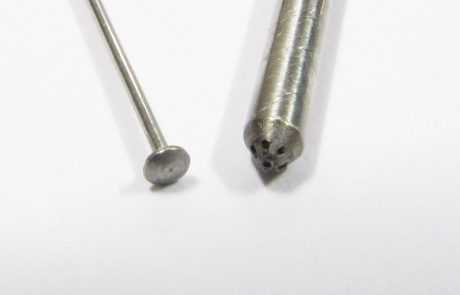

  • Sub-millimeter probe diameters available; min. 1.8 mm for seven-hole velocity probes
  • Integrated 2W probe heaters available (min probe diameter 10 mm); cooling sleeves available for high-temperature applications
  • Pressure probes – hole diameters down to 200 microns available

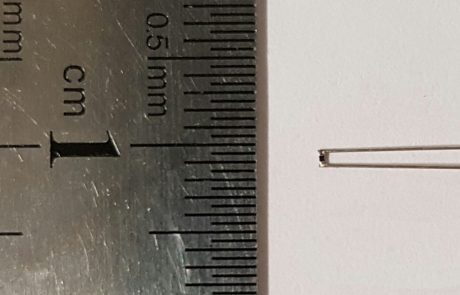

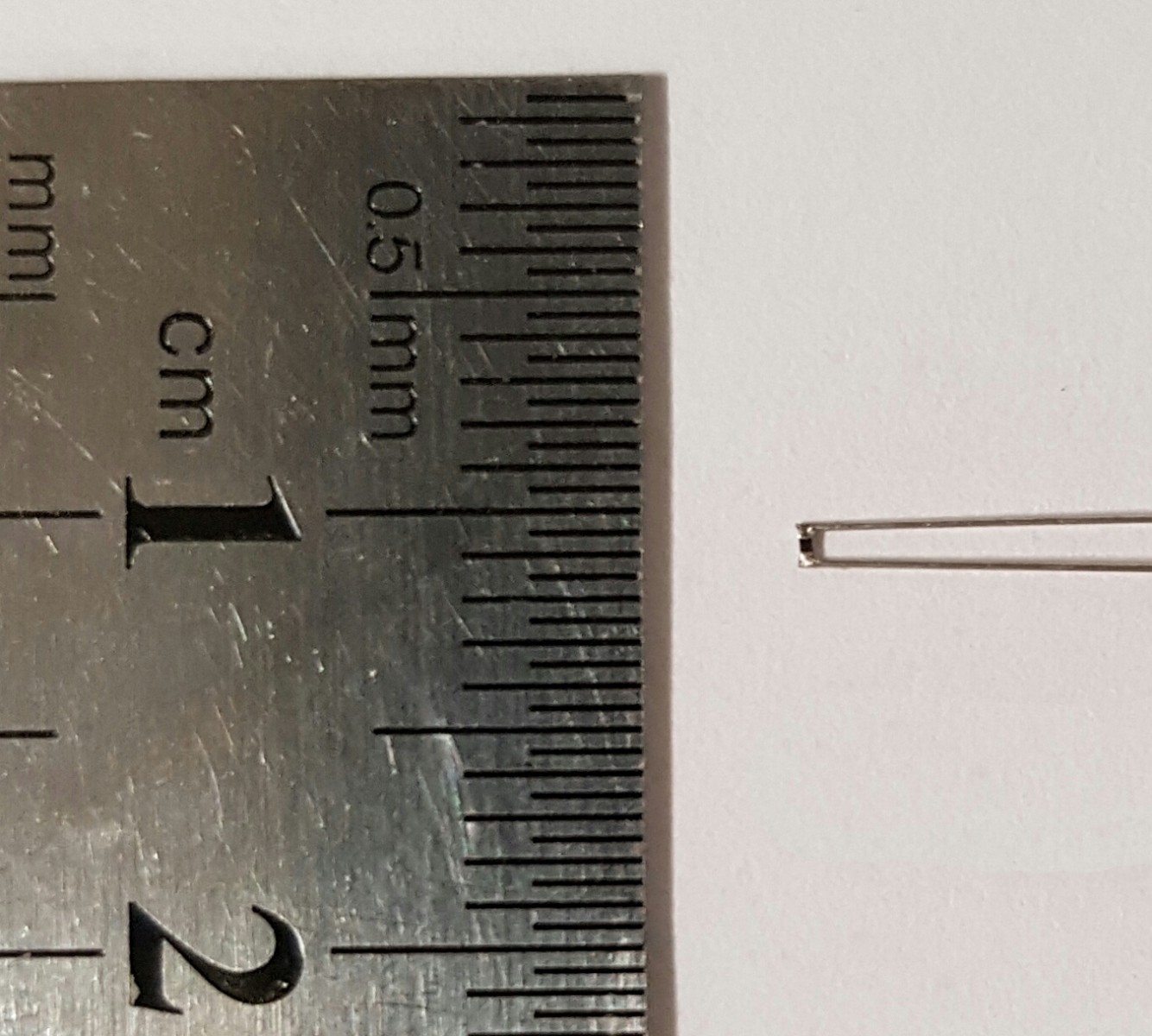

  • Temperature probes: Si-based thermistor probe tips with bandwidths up to 20 Hz

Options available

  • Wide variety of sensor packages available for all types of probes
  • Custom design service for probes, probe sensor packages and data reduction software

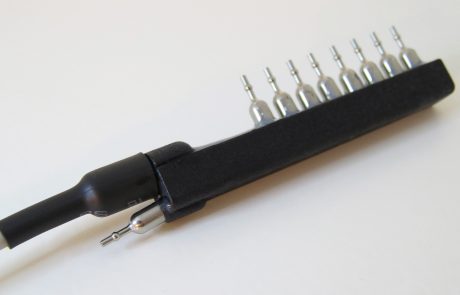

  • Rakes and probe arrays available, with networked sensors and acquisition systems
  • Calibration service available
  • Probe heating, cooling and armour available for use in harsh environments
